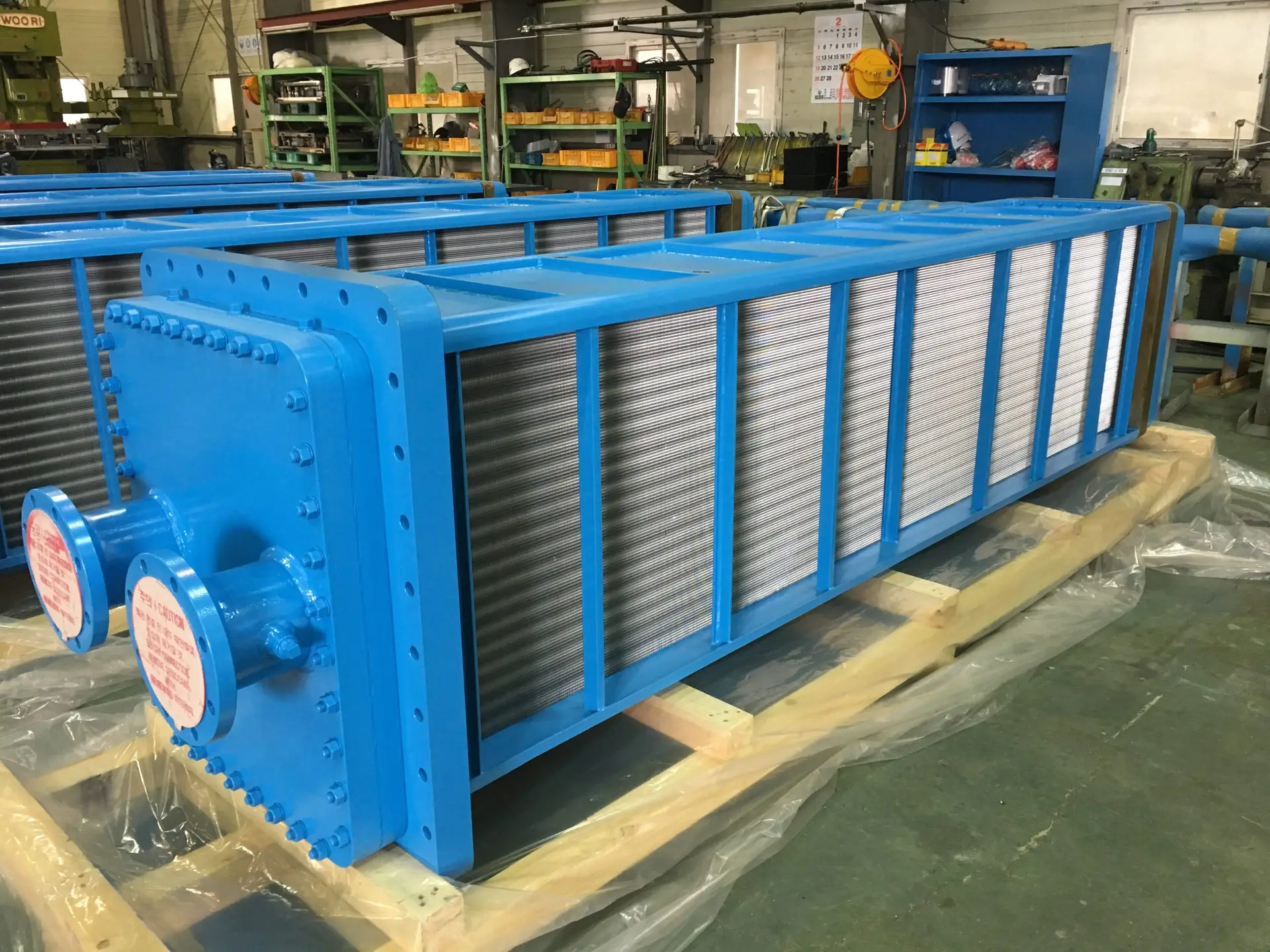

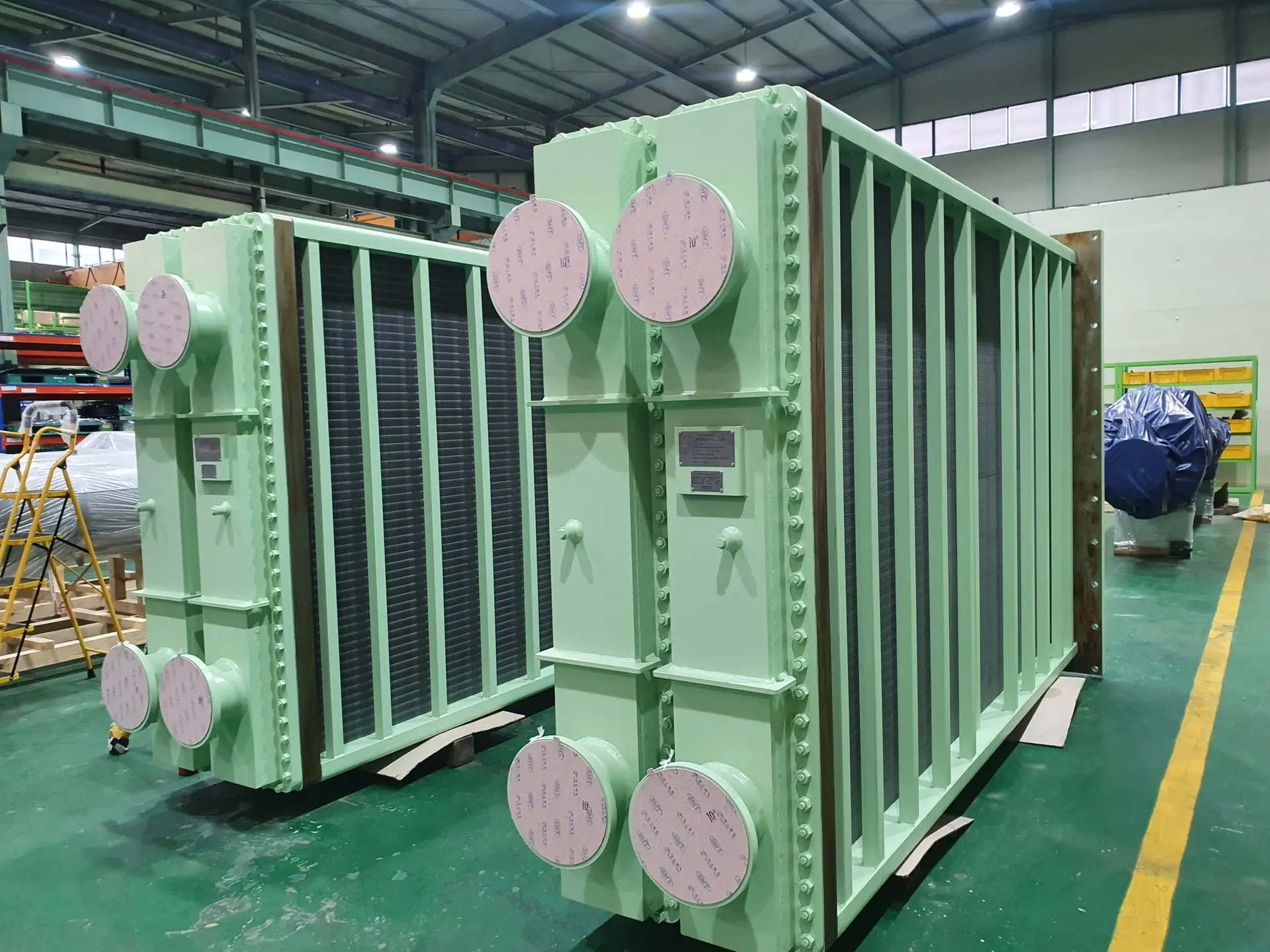

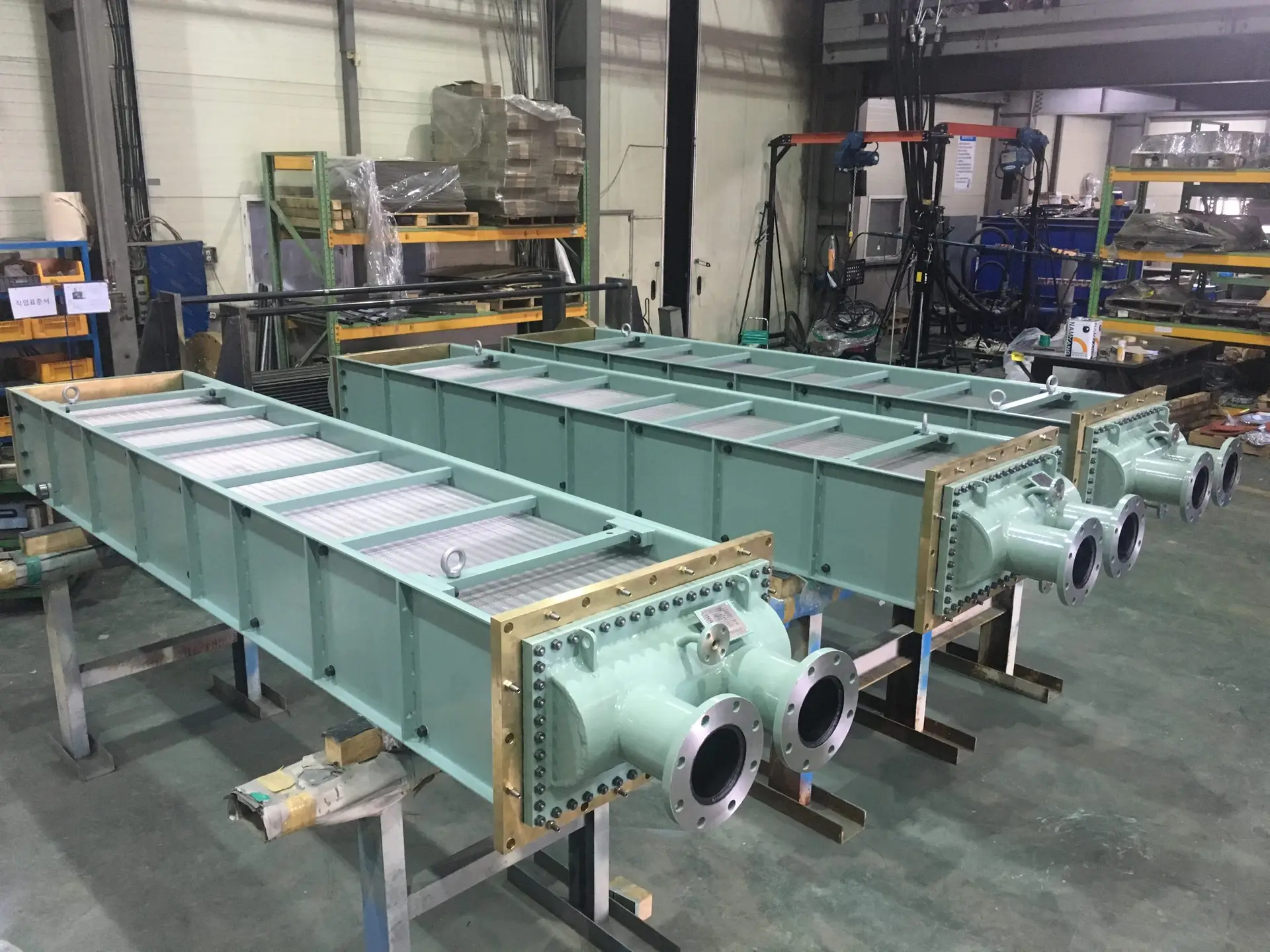

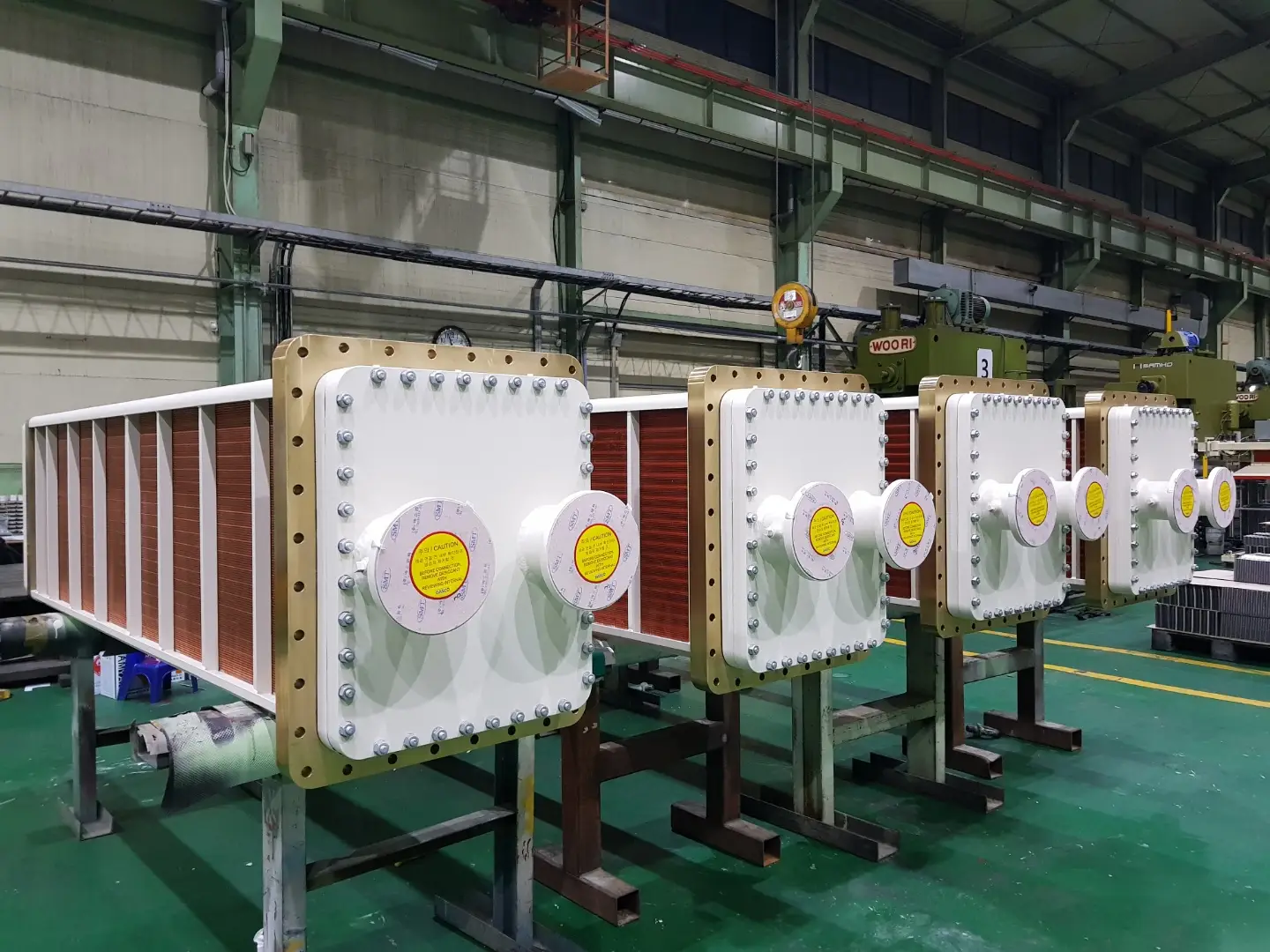

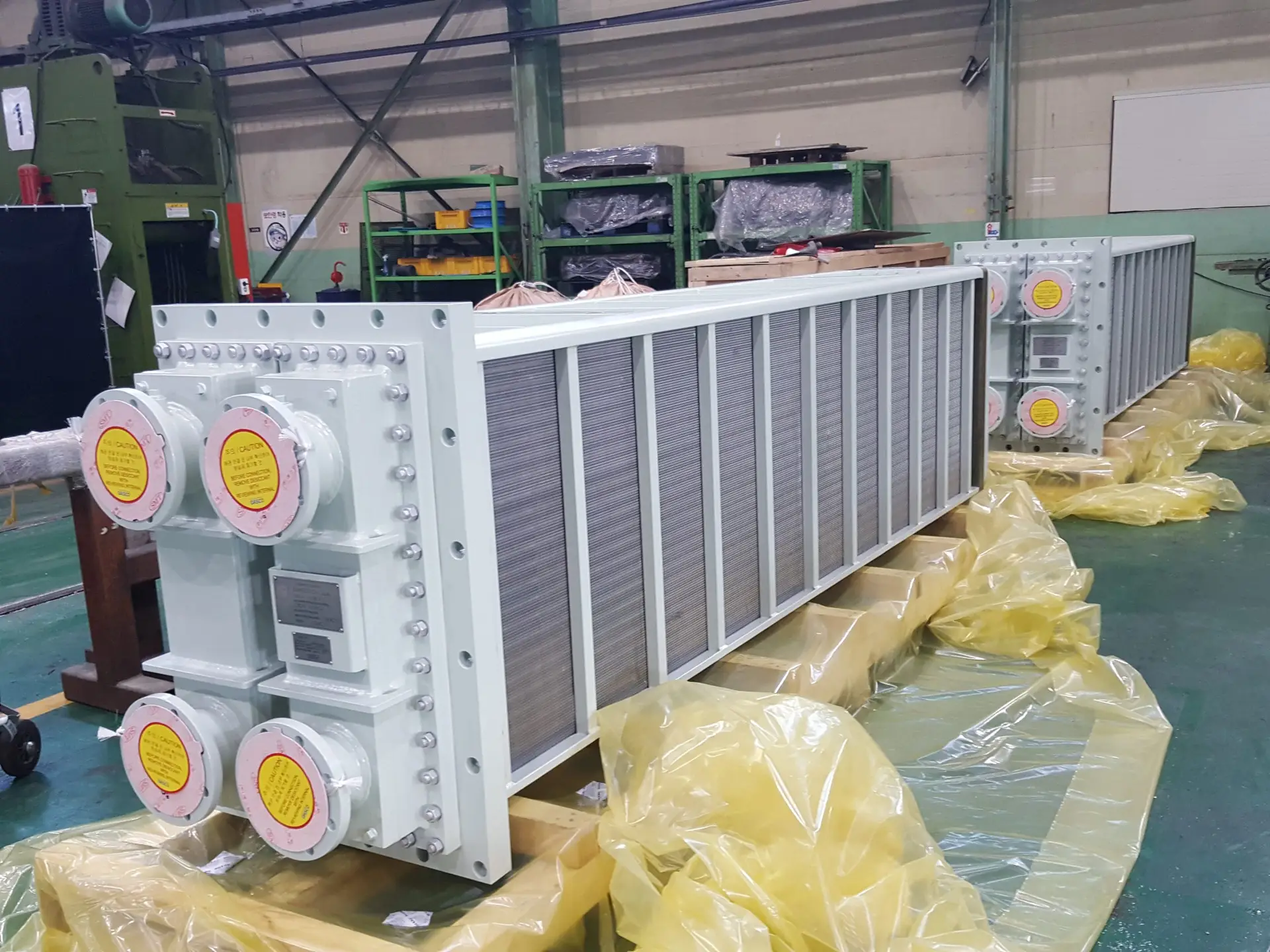

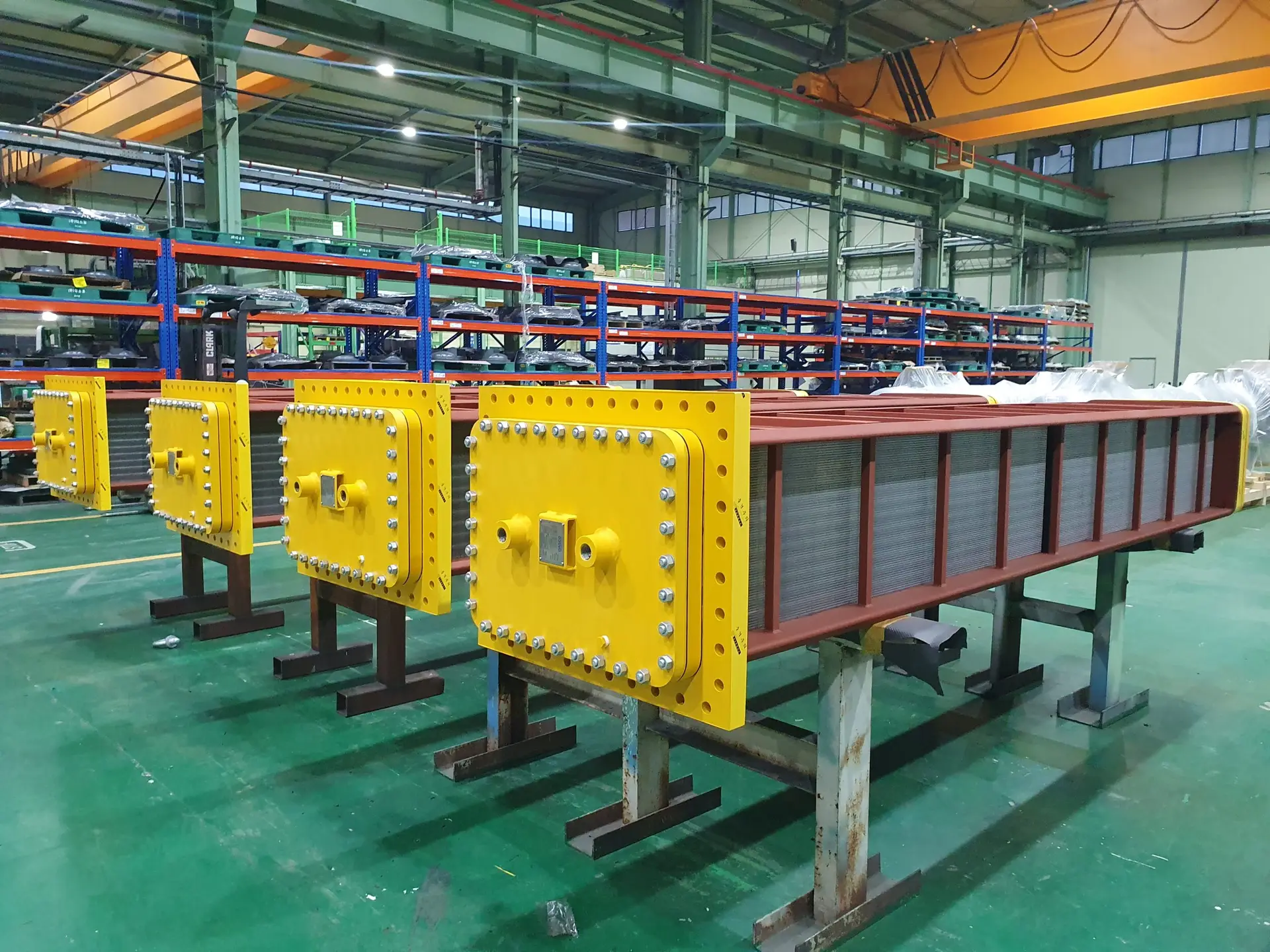

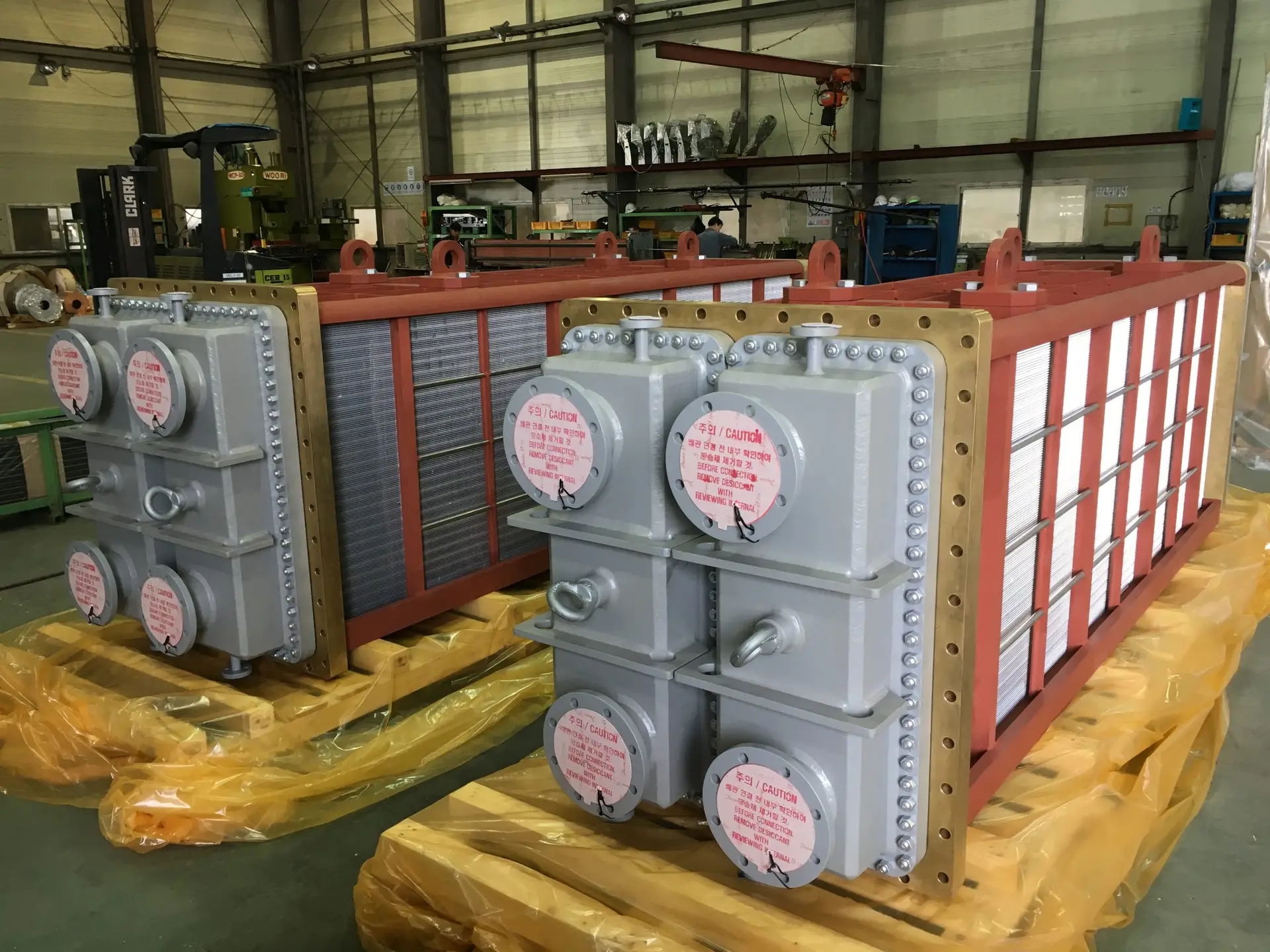

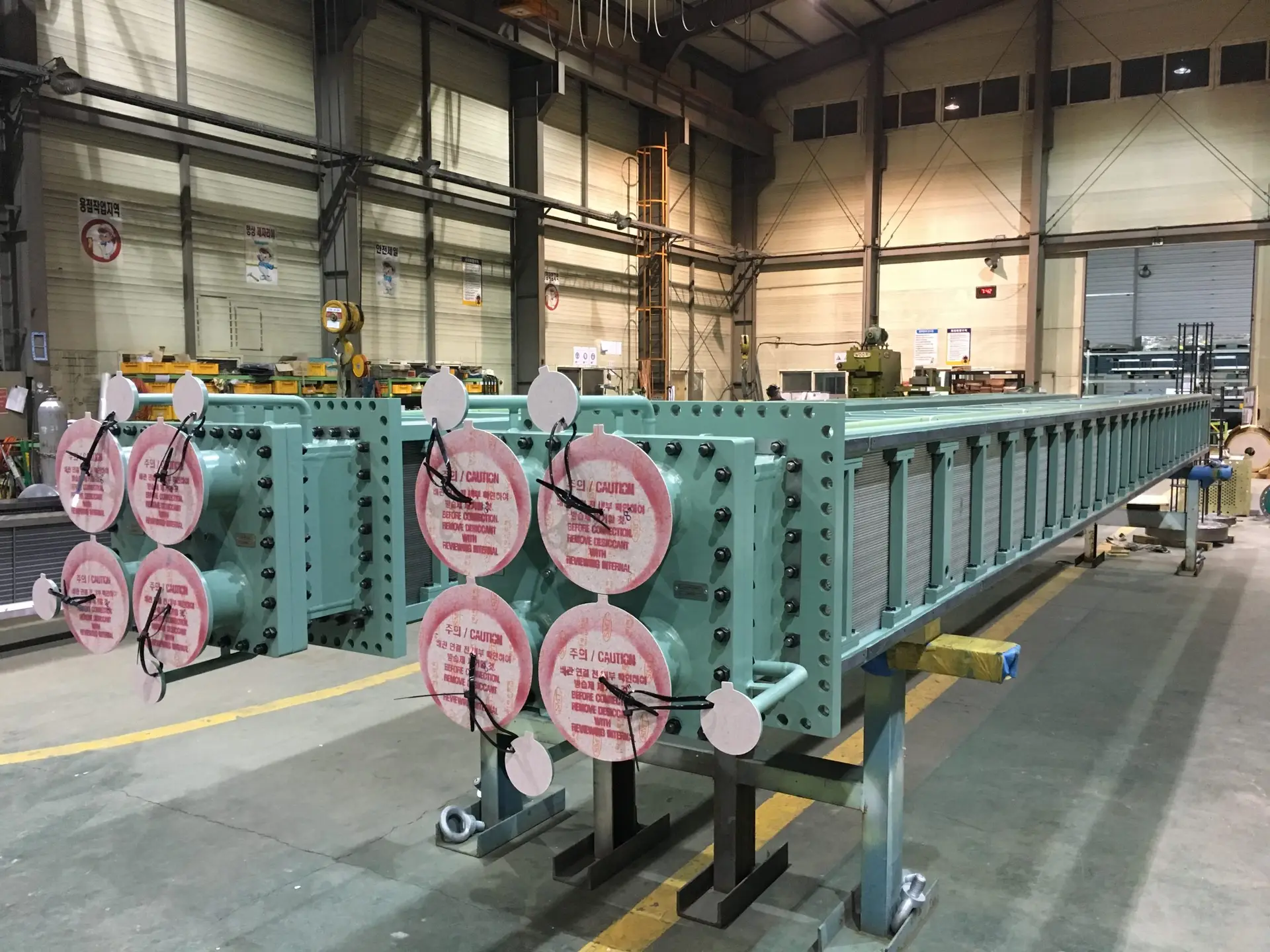

H2/AIR COOLER FOR GENERATOR FOR PLANT
Hydrogen Cooler is a heat exchanger that cools with tube side cooling water. A large-sized power generator uses hydrogen which specific heat is big as a cooling media. The high temperature hydrogen by cooling power generator flows to fin side and it is used for cooling. It consist of plate fin, tube and water box. To prevent from vibration, it is manufactured using a professional vibration interpretation device.
- Applicable Code
ASME(U-STMP with NB Cer’t)
TEMA R.C.B.
KOREA KGS, KOSHA, KEMCO, KESCO and Etc.
JAPAN KHK, 2nd Pressure Vessel code
CE MARK (PED Cer’t)
World Wide Local law (DOSH, MOL, TRCU for Russia, CRN for Canada & etc.)
- Material Combination
Tube : Cu-Ni (9:1, 7:3), Cu, SUS 304, 316, Duplex.
Fin : AL, CU, SUS
Fin Coat : Sin Coat, Bly gold Coat, Phenolic Coat
- Registered to GE, Doosan Heavy Industries
